动平衡

特性Characteristics

卓越性能 Excellent performance

以高精度应用为目标，使用先进的部件做核心，将采集的所有信号数字化，采用全新开发的数字信号处理算法，大大增强抗干扰性，确保了测量的高精确性，而使用传统方法很难做到这一点。

Aims in high precision, accompanied with advanced parts, the product process the data sampled with newly developed digital signal processing method, which reduces interference and ensures high accuracy of measurement, while the traditional measurement is not capable to provide.

·高再现性，0.1mg

·Accurate reconstruction, 0.1mg

·高稳定性，重复测试误差最小可达1mg

·Highly stability, minimum repeating measurement inaccuracy reduced to 1mg

·高速度，测试时间小于3秒

·Fast speed, measurement done within 3 seconds

操作简便 Easy operating

以提升生产效率为目标，精心设计友好的人机界面，直接明了，简单化操作步骤。

To increase productivity, the friendly designed interface makes it easy to operate the machine and reduces procedures.

·数字显示＋图形显示不平衡量大小和相位

·Unbalanced variables displayed numerally and graphically

·中(英)文对话，触摸屏操作

·Chinese (English) dialog with touch screen technology help to operate

·操作人员可直接上岗

·Operators can quickly master and operate immediately

功能强大Powerful functions

·数百种型号存储功能，直接调取,方便生产

·Hundreds of type available in storage, importable and easy for production

·校正模块，三步轻松完成

·Correction module, correction can be done within three steps

·切换工件型号，无需重新校正

·No need to re-correct when switching from one type of parts to another

配置灵活Flexible configuration

·体积小，便于生产调整

·Small in size, easy for rearrangement

·单次 / 连续模式切换测量

·Single/continuous modes of measurement

·加料 / 去料选择

·Add/delete material choices

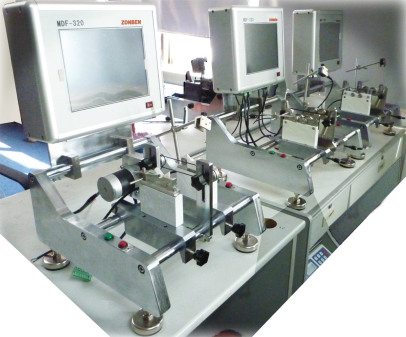

技术参数 Technical data MDF310   MDF320  MDF350

工件质量范围(Kg)  Rotor weight                       0.01-0.4     0.1-2     1.6-8

工件最大直径(mm) Maximum rotor diameter                40        80       120

两支承间距离(mm) Bearing distance                   10-80      30-300   30-400

支承轴径范围(mm) Journal diameter                    1-8        2-22     5-30

平衡转速(rpm) Balancing speed                      800-4000   800-2500  800-2500

不平衡量最小显示(mg)   Min. display of unbalance amount    0.1           0.1       0.1

最小可达剩余不平衡度(emar)(gmm/kg)                    0.1           0.1       0.1

Min. achievable residual unbalance amount

不平衡量减低率(Urr) Unbalance reduction ratio(Urr)       90%         90%       90%

尺寸(mm) Dimension           350×400×550  350×400×550   480×400×550

电源 Power supply                          220V 50/60Hz

重量(Kg) Weight                           30           35         45
