换向器表面质量测试系统

测量项目MEASUREMENT  ITEMS

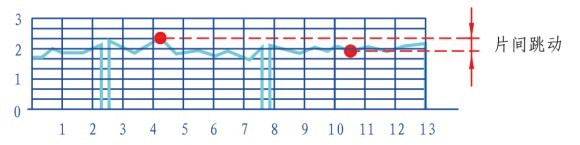

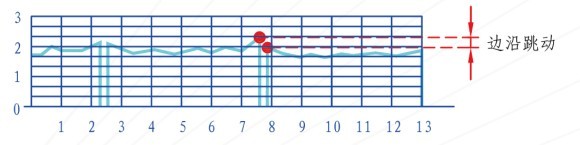

片间跳动 BAR TO BAR STEP

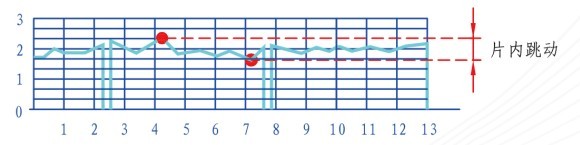

片内跳动 DELTA  BAR

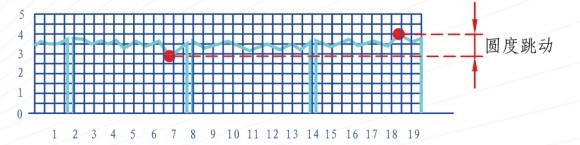

圆周差异 TIR Total indicated Roundness

电枢直径 DIAMETER

适用范围MEASURE  DIMENSIONS

换向器直径 5 ~ 45mm  Commutator diameter  5 ~ 45mm

换向器片数 3 ~ 48  Bars number  3 ~ 48

轴直径 3 ~ 30mm  Shaft diameter  3 ~ 30mm

轴总长度 最长300mm  Total shaft length  300mm max

铁芯直径 最大100mm   Stack lamination diameter  100mm max

技术参数 TECHNICAL DESCRIPTION

仪器精度：0.01um  Instrument precision: 0.01 um

可重复性：高于0.2um  Repeatability : better than 0.2um

测量精度：高于0.2um  Measurement precision : better than 0.2um

特性：CHARICTERISTICS:

仪器操作简便Esay to operator the machine

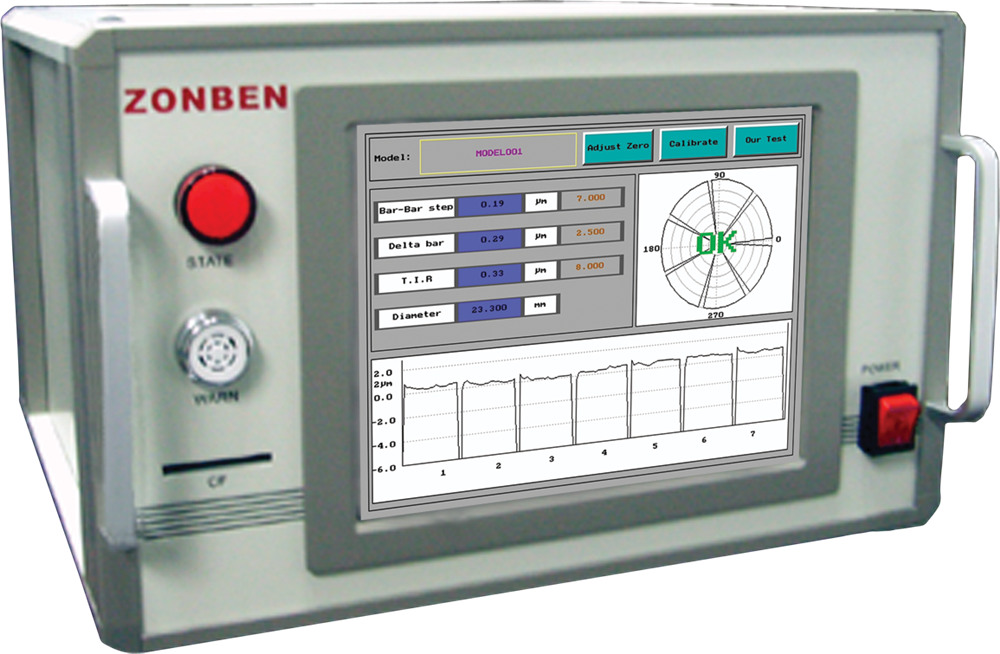

1、 触摸屏系统使得参数设置与操作变得简便快捷

Touch-screen system makes the parameter seting up and operation to be simple and quick

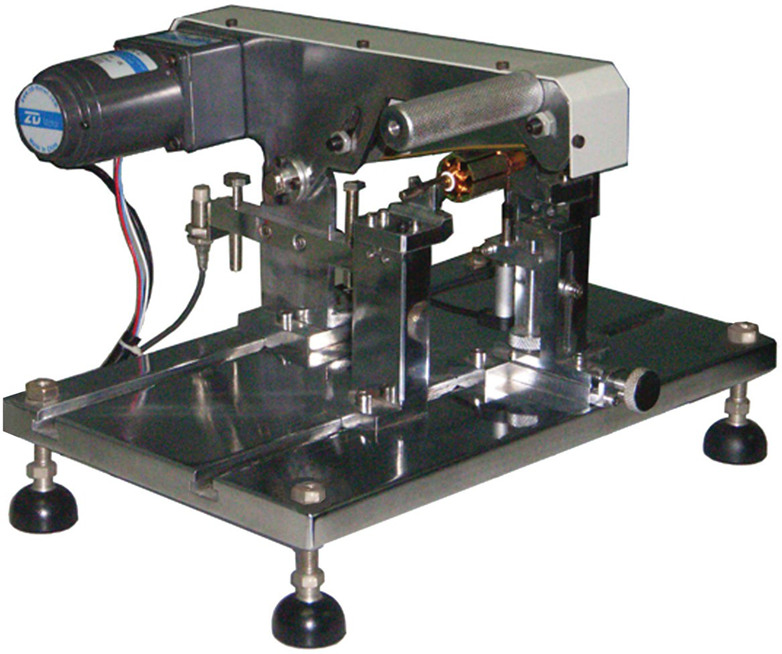

2、只需要将电枢装卡到v型支架上，然后将手柄放低，测试结果将会自动的显示在屏幕上。

To start one testing process , the operator only needs to load the armature into the “V” shafts and pull down the handle, then the results will be displayed on the screen automatically.

强大的存储能力Powerful storage

200种不同型号电枢的参数可独立地进行设置，如果某种型号的参数已设定好，再一次测试此型号电枢时只需对其型号进行一次选择即可，而不用再对其所有参数再进行一次设定。

200 group of parameter for the different armatures can be set dividually, if you have finished the parameter setting, the second time ,you only need to select the right model of the armature ,but not set the parameter again.

测试数据可方便的进行编辑Easy to edit the test result

测试数据存储在CF 卡中。依据不同的电枢型号，数据保存在以对应型号名命名的文件中，可直接以Excel 表格形式打开进行编辑。

The test results will be saved in the compact flash disk. According to its model name , data of different model is saved in the different file that named by the model name. you can open the file by Excel directly and edit it .
